Product Description
HX0701859 AG+AF Touch glass 7 inch pcap touch screen with cypress touch controller ic,uses 6pins I2C interface,and the tft lcd screen with 1024x600 resolution,40PINS LVDS interface.We can provide "IIC TO USB " and "lvds to hdmi" driver board.
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.
Anti-Fingerprint(AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
HX0701859 AG+AF Touch glass 7 inch pcap touch screen Industrial application partially, Glass+Glass structure, strong anti-jamming performance, support operation with water, gloves, and thickening tempered glass or thick PC material on the top surface. mainly used in industrial, outdoor portable terminal, smart home appliances, medical electronics, automotive and other fields, surface special treatment and structure can be customized.
This 7-inch PCAP touch screen module is a high-brightness standard module product, which is launched for outdoor use. It has RGB interface and 800*480 resolution. It can be converted into different interface types to match the actual application needs of customers. It has good anti-interference performance. It has been applied in agricultural machinery, vehicle control terminals, outdoor measuring instruments, charging piles and other products.
| TPM | Model Number | HX0701859 |
| Brand | Grahowlet | |
| Size | 7.0 inch | |
| Operating Temperature | -20℃ ～ 70℃ | |
| Storage Temperature | -30℃ ～ 80℃ | |
| Outline Dimension | 165.00(W)x100.00(H)x7.79(D) mm | |
| Viewing Area | 154.88(W)x86.72(H) mm | |
| Active Area | 154.21(W)x85.92(H) mm | |
| Bonding workmanship | Air/Optical Bonding | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
| PCAP | Interface Type | IIC/USB |
| Structure | Glass+Glass | |
| Controller IC | Cypress | |
| Surface treatment | AG+AF | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 2.8V ～ 3.3V | |
| TFT | Resolution | 1024x600 |
| Interface Type | 40pins LVDS/HDMI/VGA | |
| Luminance | 1000 cd/m² | |
| Viewing Angle | ALL |
Product Features
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine

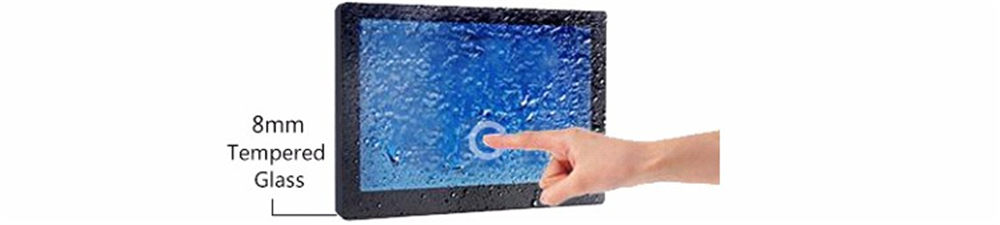

3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF

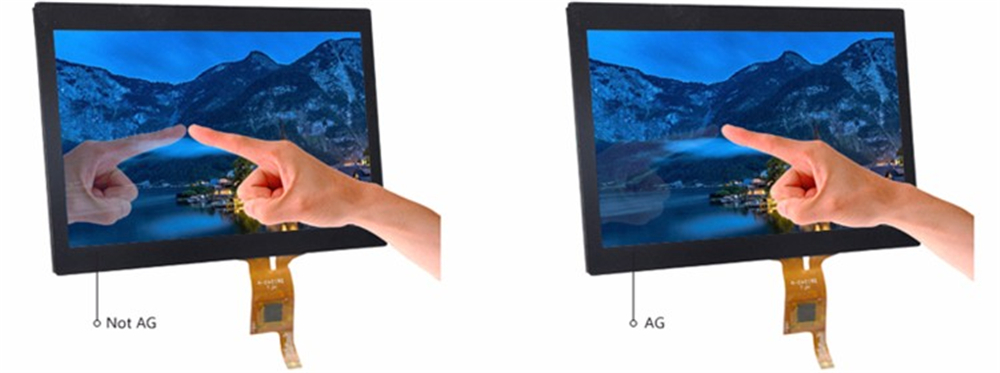

Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
Anti-Reflective(AR) processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects significantly in the sun.

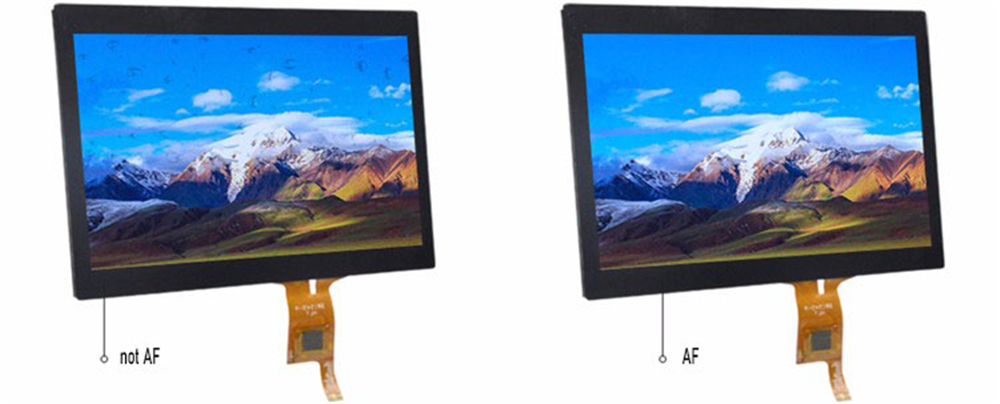

Anti-Fingerprint(AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
