8 inch capacitive touch panel

Product Description
The 8 inch capacitive touch panel with cypress touch controller ic can support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields. Deep customization service supported and a variety of interface converting & drive boards available, which is convenient for customers to use
This 8 inch capacitive touch panel product is our standard product for the medical field. It can match the applications of 8 inch display with 800x600/1024*768 resolution . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.

Model Number HX0801845-CTP
Brand Grahowlet
Size 8.0 inch
Interface Type IIC/USB
Structure G+G
Controller IC Cypress
Touch Points 10 points
Transparency ≥85%
Surface Hardness ≥6H
Operating Environment -20℃ ~ 70℃,≤85% RH
Storage Environment -30℃ ~ 80℃,≤85% RH
Power Supply Voltage 2.8V ~ 3.3V

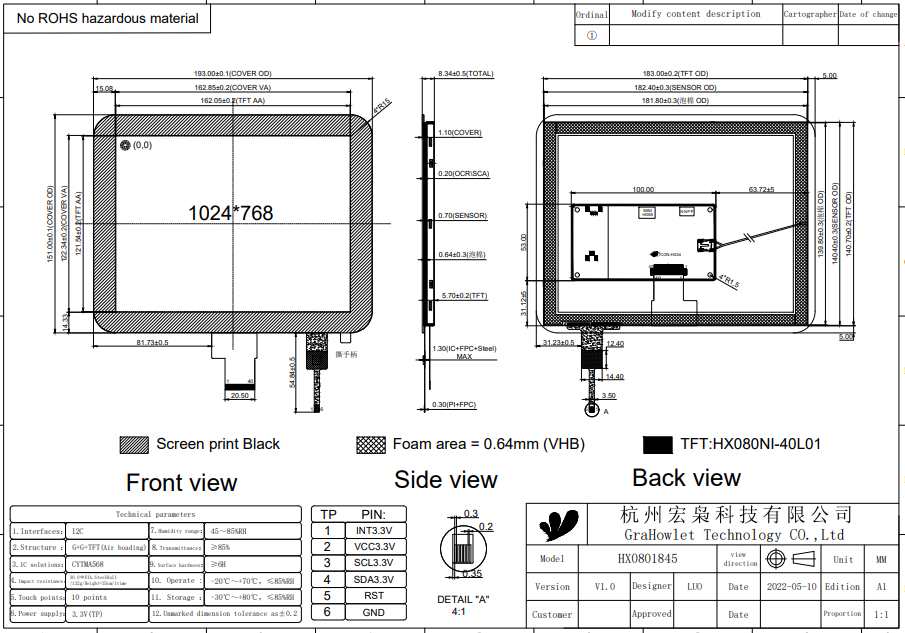

Outline Dimension 193.00(W)x151.00(H)x2.00(D) mm
Viewing Area 162.85(W)x122.34(H) mm
Support Systems Windows/Android/Linux etc.
Warranty 1 year

Custom Service

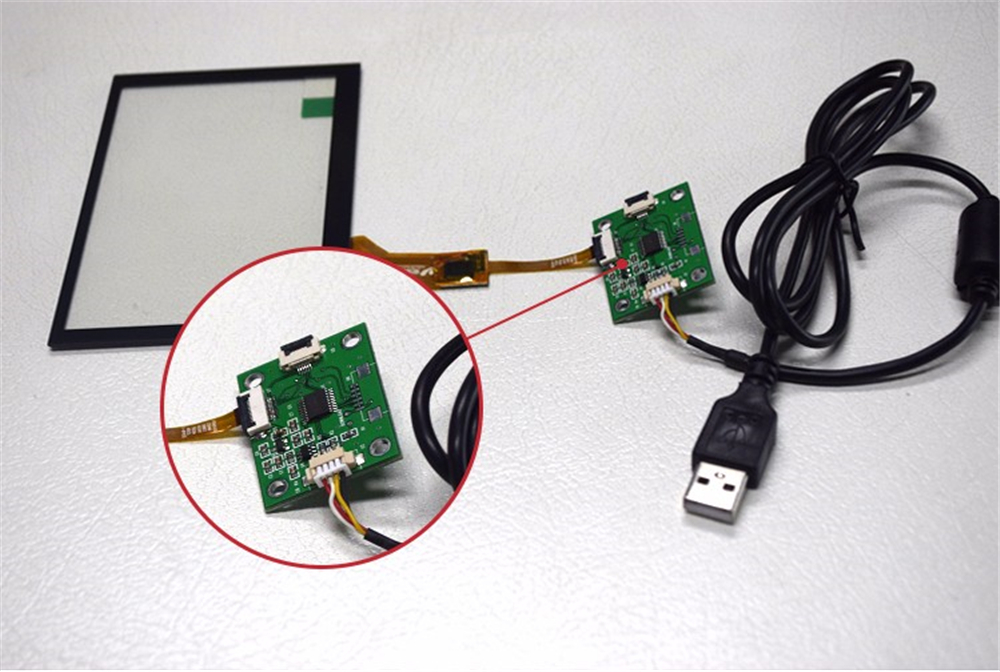

If you want USB interface, we can supply IIC to USB Bridgeboard


Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
Q: What can Grahowlet technology do? Can you briefly introduce it?

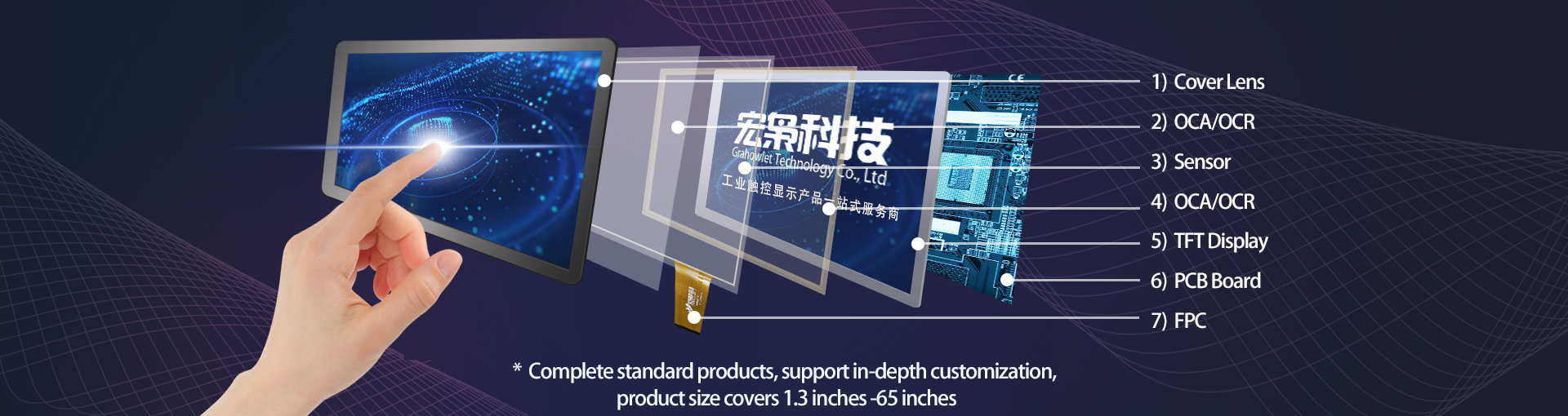

A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc
