8 inch 800×600 touch display module with RGB interface

8 inch 800x600 touch display module with RGB interface uses cypress touch controller ic, support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields. Deep customization service supported and a variety of interface converting & drive boards available, which is convenient for customers to use. The 8 inch 800x600 touch display module with RGB interface and independent back light supply, the module adopts the air bonding process, the capacitive touch screen interface is IIC, adopts the Cypress solution, It has excellent anti-interference performance. it is more suitable for some applications with complex application environment, and the application surface is very wide

Model Number	HX0801706
Brand	Grahowlet
Size	8.0 inch
Operating Temperature	-20℃ ～ 70℃
Storage Temperature	-30℃ ～ 80℃

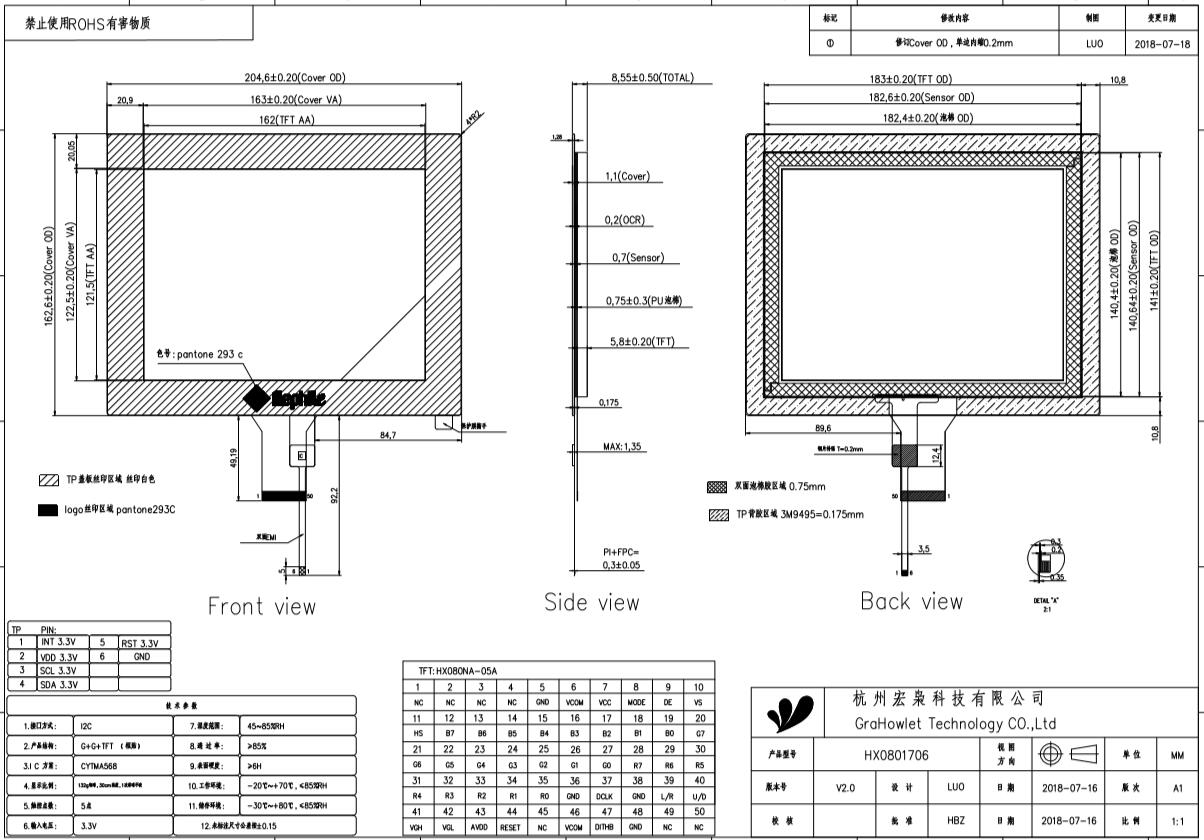

Outline Dimension	205.00(W)x163.00(H)x8.55(D) mm
Viewing Area	163.00(W)x122.50(H) mm
Active Area	162.00(W)x121.50(H) mm
Support Systems	Windows/Android/Linux etc.
Warranty	1 year
Interface Type	IIC/USB
Structure	G+G
Controller IC	Cypress
Touch Points	10 points
Transparency	≥85%
Surface Hardness	≥6H
Power Supply Voltage	2.8V ～ 3.3V
Resolution	800x600
Interface Type	RGB/HDMI/VGA
Luminance	300 cd/m²
Viewing Angle	70/70/50/70
