4.3 inch 480×272 tft lcd screen panel

This 4.3 inch 480x272 tft lcd screen panel product is our standard product for the medical field. It has passed various certification tests of medical treatment. It has strong anti-jamming performance. It can match our 4.3 inch standard projected capacitive touch panel . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.
Product Description

Model Number HX043HL08-40S
Brand Grahowlet
Size 4.3 inch
Operating Temperature -20℃ ~ 70℃
Storage Temperature -30℃ ~ 80℃

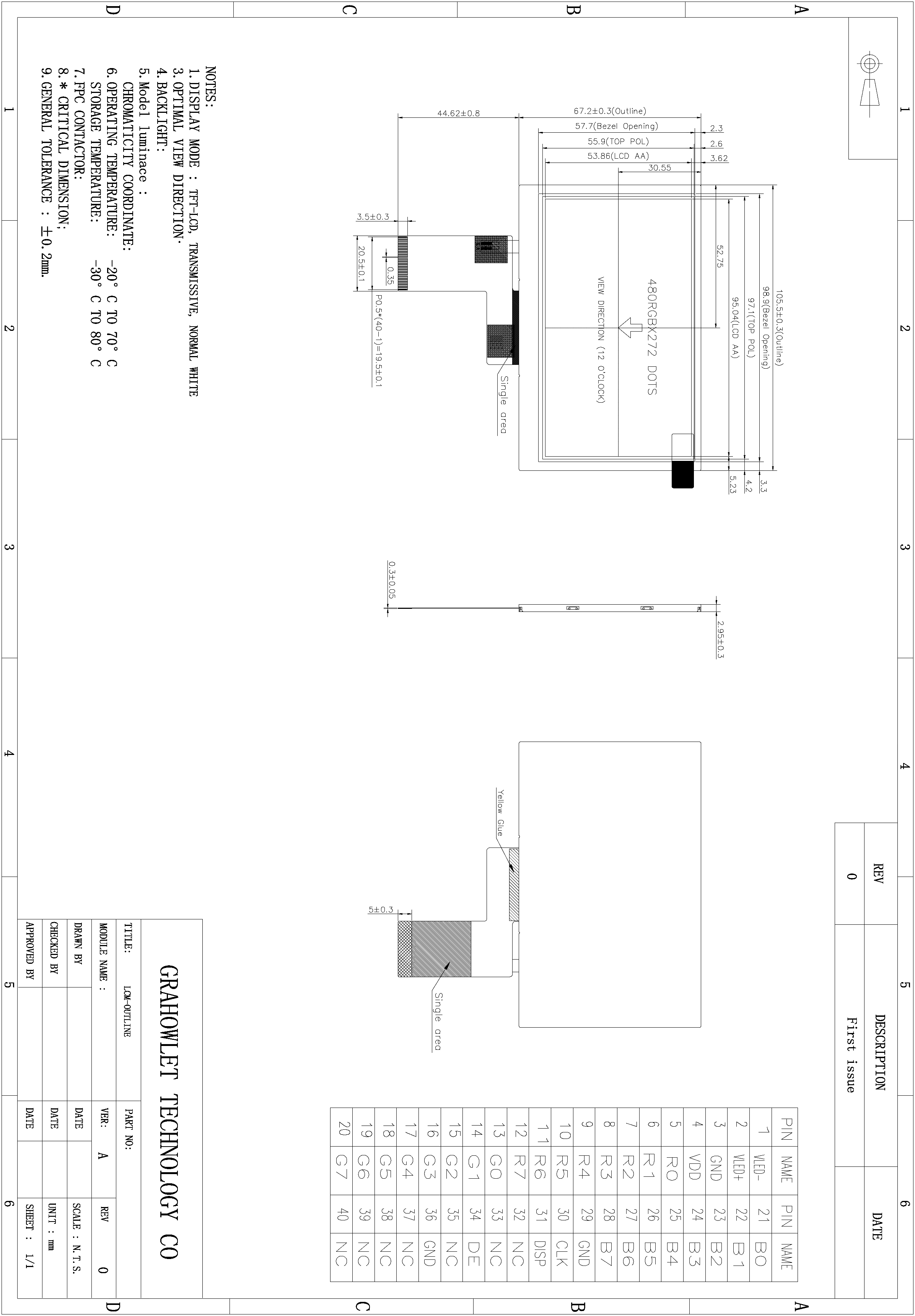

Outline Dimension 105.5(W) × 67.2(H) ×2.95(D) mm
Active Area 95.04(W) × 53.856(H) mm
Dot pitch(mm) 0.198(W) × 0.198(H) mm
Surface treatment Anti-Glare
Display Mode Normally Black, Transmissive,IPS
Color Depth 16.7M
Contrast Ratio 800:1 (Typ)
Response Time (ms) 25ms (OFF+ON TYP)
Backlight WLED
Resolution 480 × 3 (RGB) × 272
Interface Type RGB(40PINS)
Luminance 300 cd/m²
Viewing Angle 80/80/80/80
Support Systems Windows/Android/Linux etc.
Warranty 1 year

  • 4.3 inch 480×272 tft lcd screen panel Related Video:
