The 15.6 Inch Touch Screen with FHD 1920*1080 IPS display,10 points projected capacitive touch,USB interface.The display with EDP interface,convertible to HDMI or VGA.it offers excellent image quality ，it has wide viewing angle range 170 degree,minimum LED life time is 15000 hours,it's also ultra-thin and ultra-light,the thickness of this screen is only 3.2mm.The structure of the capacitive touch is Glass+Glass,it's rugged and durable,it can even work with a protective tempered glass adding on the top of the touch screen,it'sperfect for kiosk,POS,queue machine，ATM，ordering machine,advertising machine etc.
| TPM |
Model Number | HX1561706 |
| Brand | Grahowlet | |
| Size | 15.6 inch | |
| Operating Temperature | -10℃ ~ 70℃ | |
| Storage Temperature | -20℃ ~ 70℃ | |

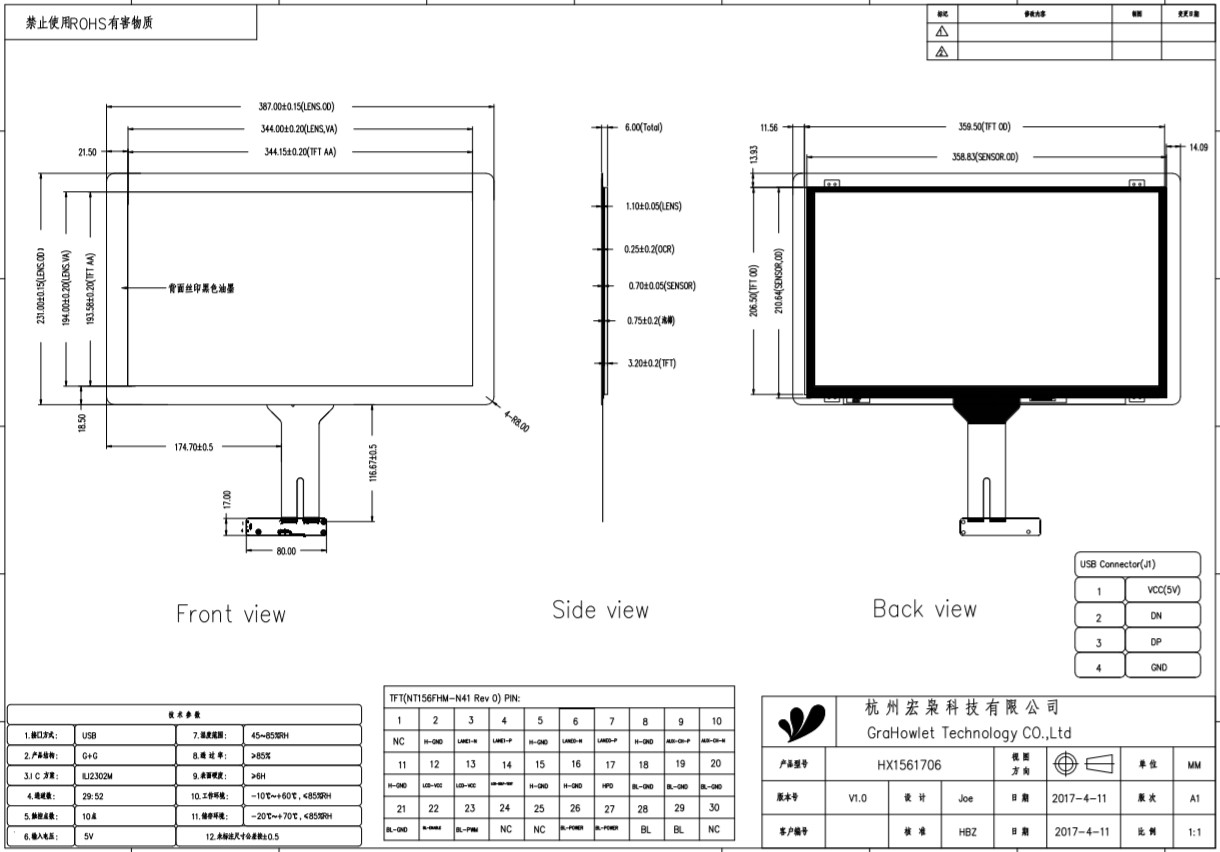

| Outline Dimension | 387.00(W)x231.00(H)x6.00(D) mm | |
| Viewing Area | 345.43(W)x194.00(H) mm | |
| Active Area | 344.15(W)x193.58(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
| CTP |
Interface Type | USB |
| Material/Structure | G+G | |
| Controller IC | ILI2302M | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 5V | |
| TFT |
Resolution | 1920x1080 |
| Interface Type | EDP/HDMI/VGA | |
| Luminance | 250 cd/m² | |
| Viewing Angle | ALL |
Our Service
| programe evsluation | 1 to 2 morking days | |
| Drawings | 2 to 3 working days | |
| Customized products | 3 to 4 weeks(after drawings confirmed) | |
| Mass Production delivery | 4 to 6 weeks | |
| Software debugging | ||
| Capacity | 100K per month(10.1 inches as a reference) | |
| Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
| Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
| Stable supply chain for at least 3 years guarantee | ||
| One year warranty time for all of our products | ||
FAQ
Q1:Can you produce custom-made projected capacitive touch screen panel overlays?
A:Yes, welcome to customize the projected capacitive touch screen panel products according to your requirements.
Q2.What is the products application?
A:Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
Q3: What special functions can you supply for touch screens?
A:Waterproof, gloves touching, thick cover glass (maximum 15mm), sunlight readable, high brightness, backlight enhancing, AF, AF, AR, optical bonding .....
