15.6 inch touch screen module for arduino


    The 15.6 inch touch screen module for arduino,air bonding and optical bonding optional, mainly used in industrial, medical electronics, intelligent security, advertising terminals, financial terminals and other fields, support customization of various structures,  surface treatment AG AR AF and other special effects; brightness can be customized, Capacitive touch screen iic/usb/rs232 interface optional, display can match the VGA/HDMI driver board according to customer demand;

TPM

Model Number HX1561705 V2.0
Brand Grahowlet
Size 15.6 inch
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃

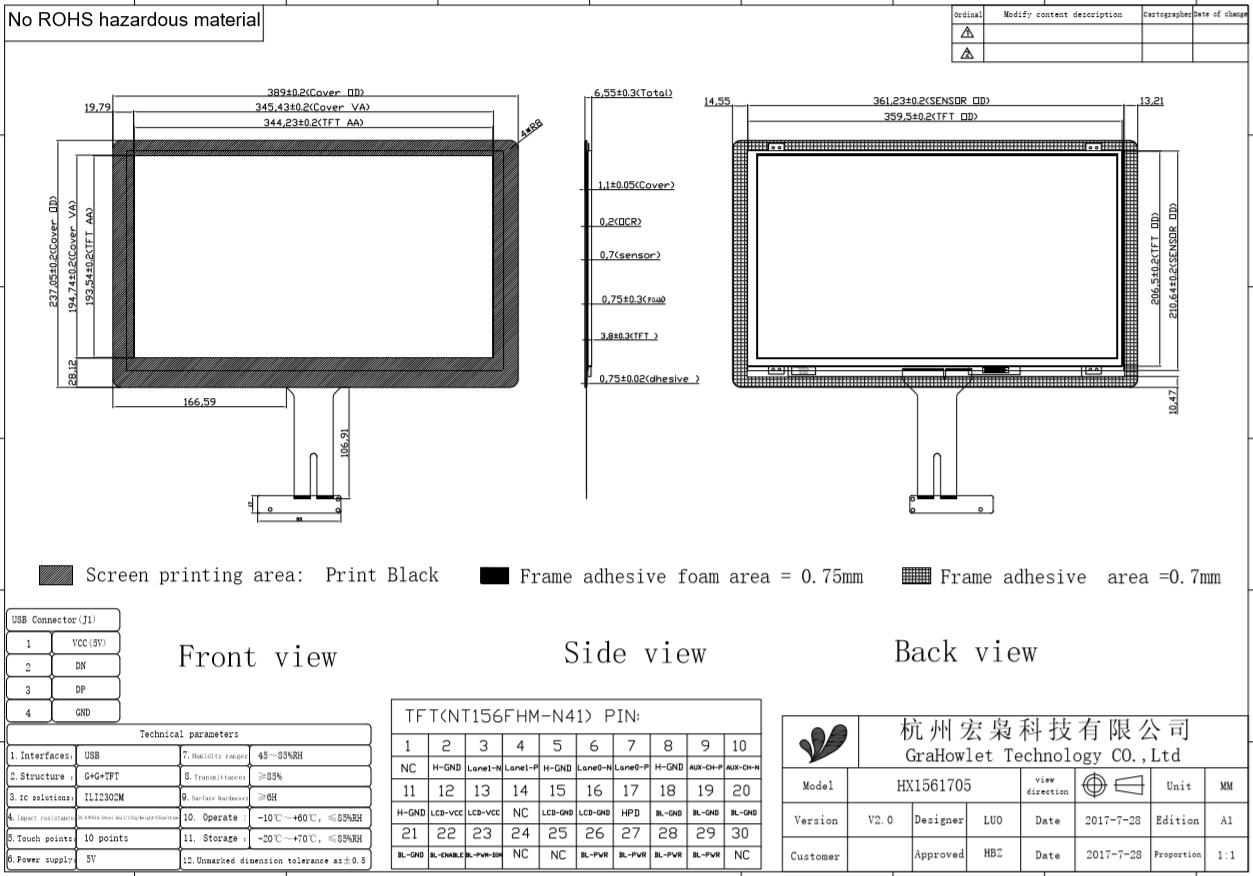

Outline Dimension 389.00(W)x237.05(H)x6.55(D) mm
Viewing Area 345.43(W)x194.74(H) mm
Active Area 344.16(W)x193.59(H) mm
Support Systems Windows/Android/Linux etc.
Warranty 1 year

CTP

Interface Type USB/IIC
Structure G+G
Controller IC ILITEK
Touch Points 10 points
Transparency ≥85%
Surface Hardness ≥6H
Power Supply Voltage 5V

TFT

Resolution 1920x1080
Interface Type EDP/HDMI/VGA
Luminance 220 cd/m²
Viewing Angle 45/45/20/40
