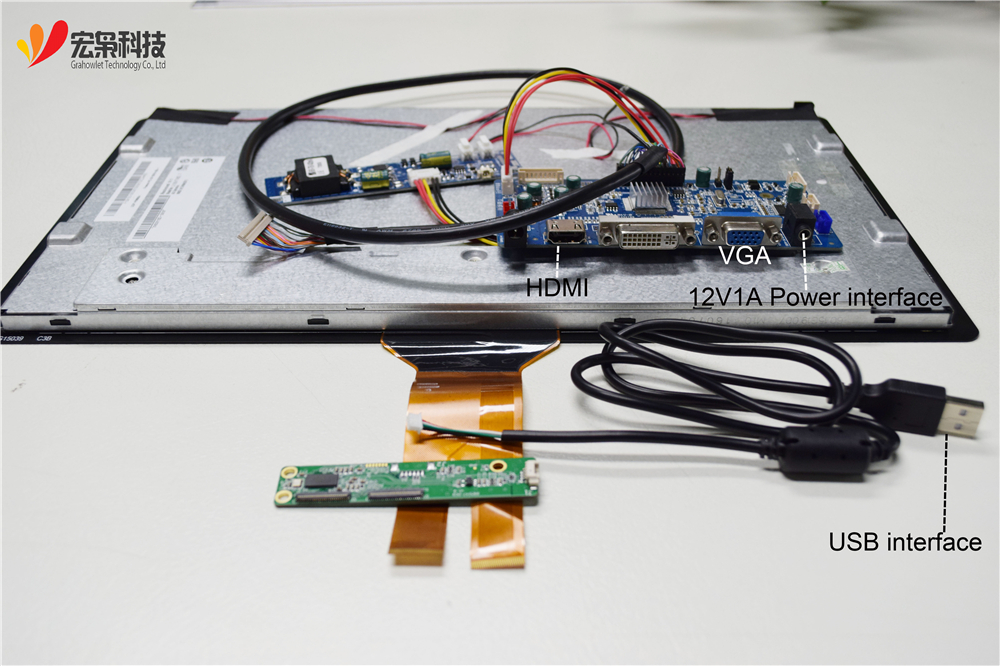

The 15.6 inch tft lcd touch screen module，air bonding and optical bonding optional, mainly used in medical electronics, intelligent security, advertising terminals, financial terminals and other fields, support customization of structures, surface treatment AG AR AF and other special effects ;Capacitive touch screen iic/usb/rs232 interface optional, display can be based on customer needs and match different interface conversion board
| TPM |
Model Number |
HX1561707 |
| Brand |
Grahowlet |
| Size |
15.6 inch |
| Operating Temperature |
-10℃ ~ 70℃ |
| Storage Temperature |
-20℃ ~ 70℃ |

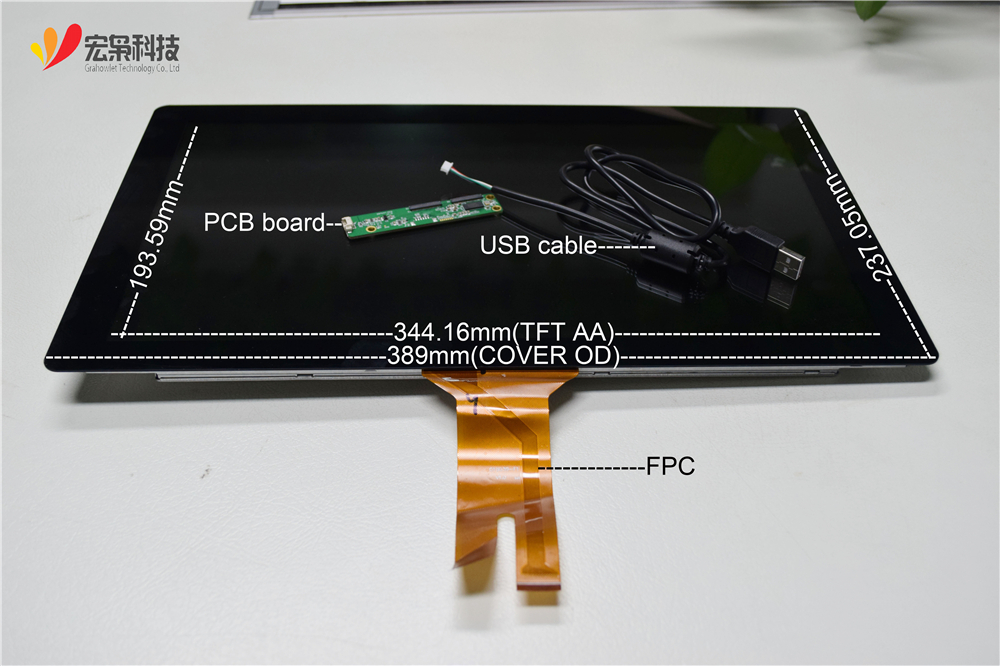

| Outline Dimension |
389.00(W)x237.05(H)x14.75(D) mm |
| Viewing Area |
345.43(W)x194.74(H) mm |
| Active Area |
344.16(W)x193.59(H) mm |
| Support Systems |
Windows/Android/Linux etc. |
| Warranty |
1 year |
| CTP |
Interface Type |
USB |
| Material/Structure |
G+G |
| Controller IC |
ILITEK |
| Touch Points |
10 points |
| Transparency |
≥85% |
| Surface Hardness |
≥6H |
| Power Supply Voltage |
5V |
| TFT |
Resolution |
1920x1080 |
| Interface Type |
LVDS/HDMI/RGB |
| Luminance |
400 cd/m² |
| Viewing Angle |
80/80/70/70 |
