The 12 inch open frame touch screen, support operation with gloves of all materials, works ok with thick tempered glass or PC put on top of cover. Industrial application, G+G structure. Mainly used in industrial, automotive, smart home appliances, intelligent security and other fields; depth customization available including structure, surface special treatment and brightness, etc.
|
TPM |
Model Number | HX1211702 V1.0 |
| Brand | Grahowlet | |
| Size | 12.1 inch | |
| Operating Temperature | -20℃ ~ 70℃ | |
| Storage Temperature | -30℃ ~ 80℃ | |

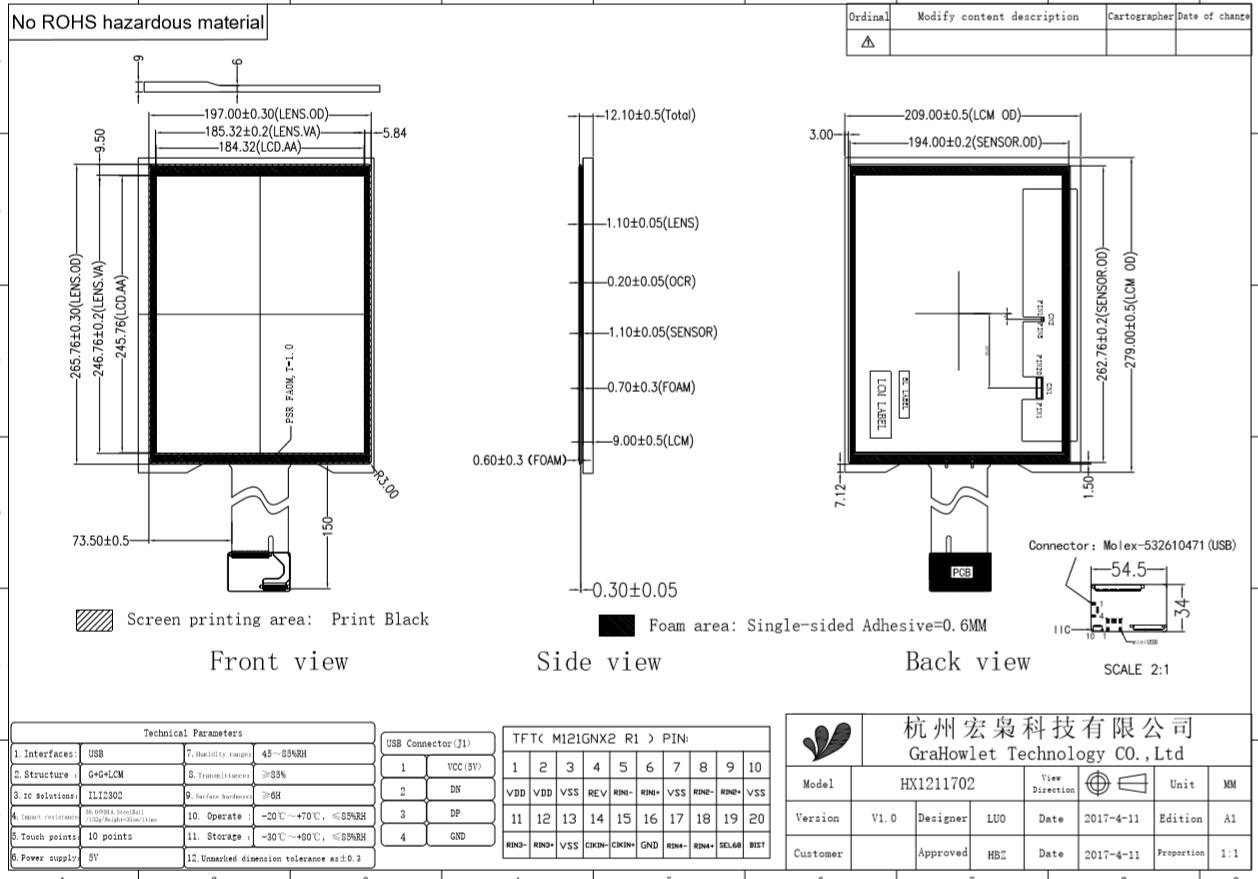

| Outline Dimension | 197.00(W)x265.76(H)x12.10(D) mm | |
| Viewing Area | 185.32(W)x246.76(H) mm | |
| Active Area | 184.32(W)x245.76(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
|
CTP |
Interface Type | USB/IIC |
| Material/Structure | G+G | |
| Controller IC | ILITEK | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 5V | |
|
TFT |
Resolution | 1024x768 |
| Interface Type | LVDS | |
| Luminance | 350 cd/m² | |
| Viewing Angle | 80/80/80/80 |
