10.1 inch touch module with 1024×600 lcd screen

Product Description

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch Full range of standard product in stock (no need customization)

Model Number HX1011832
Brand Grahowlet
Size 10.1 inch
Operating Temperature -20℃ ~ 70℃
Storage Temperature -30℃ ~ 80℃

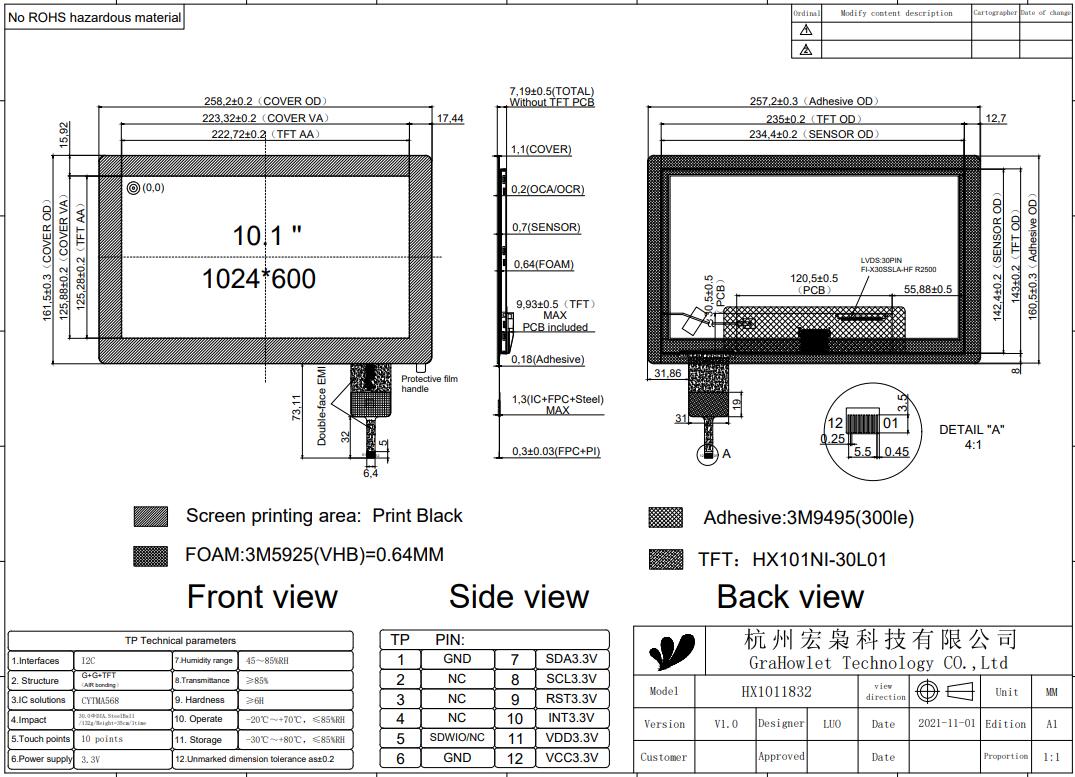

Outline Dimension 258.20(W)x161.50(H)x7.19(D) mm
Viewing Area 223.32(W)x125.88(H) mm
Active Area 222.72(W)x125.28(H) mm
Support Systems Windows/Android/Linux etc.
Warranty 1 year
Interface Type IIC/USB
Structure G+G
Controller IC Cypress
Touch Points 10 points
Transparency ≥85%
Surface Hardness ≥6H
Power Supply Voltage 2.8V ~ 3.3V
Resolution 1024x600
Interface Type LVDS/HDMI/VGA
Luminance 350 cd/m²
Viewing Angle ALL
Our Company Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
